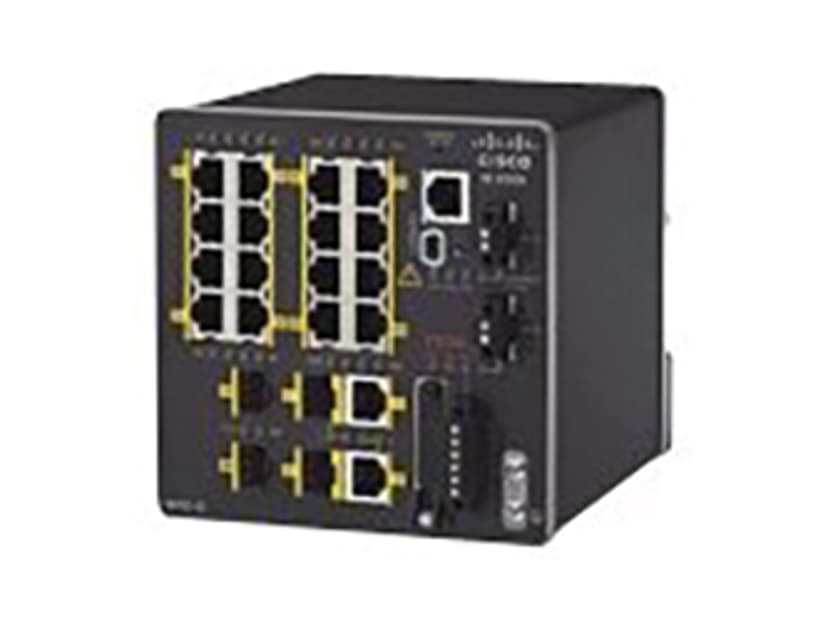

Cisco Industrial Ethernet 2000 Series

22 495 kr 698 kr/mån (Vid hyra 36 månader)
  • Lagerstatus: Beställningsvara
  • Frakt från: 139 kr
  • Artikelnr.
  • 5010926369
  • Tillv. art. nr.
  • IE-2000-16TC-G-E

Snabbfakta

Antal portar
20

Nyckelfunktioner

  • Easy deployment
  • Industrial automation protocols

Produktinformation

The Cisco Industrial Ethernet 2000 (IE 2000) series is a range of compact, industrially ruggedized access switches. IE 2000 series provides customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.

Specifikationer

Allmänt
Tillverkare Cisco
Remote Management Protocol SNMP 3, HTTPS, SSH
General / MAC Address Table Size 8K
General / Subtype Gigabit Ethernet
Rackmonteringssats Tillval
General
Compliant Standards IEEE 802.1x
RAM 256 MB
Flash Memory 64 MB
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Performance Forwarding performance (64-byte packet size) : 6.5 Mpps
Ports 16 x 10/100 + 2 x combo Gigabit SFP + 2 x Fast Ethernet SFP
Miscellaneous / Rack Mounting Kit Optional
Features DHCP support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), Port Security, Remote Switch Port Analyzer (RSPAN)
Expansion / Connectivity
Interfaces 16 x 100Base-TX - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 4 x SFP (mini-GBIC)
Expansion Slots 1 (total) / 1 (free) x SD Memory Card
Compliant Standards
Compliant Standards C-Tick, CISPR 22 Class A, CISPR 24, IEC 61000-4-11, VCCI Class A ITE, EN55022 Class A, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, IEC 60068-2-30, KCC, IEC 60068-2-27, IEC 60068-2-6, UL 508, FCC Part 15 A, IEC 60529 IP30, CISPR 11, CSA 22.2 No. 142, EN 61131-2, EN 61326-1, EN 61000-4-9, EN 61000-4-29, IEC 60068-2-14
Service och support
Service & support 1 år
Nätverk och kommunikation
Protokoll för administration på distans HTTPS, SSH, SNMP 3
Nätverk
Antal portar 20
Formfaktor DIN-skenmonterbar
Managerbar Ja
Nätverksprotokoll Statisk IPv4-routing, IGMP
Mått och vikt
Yttermått bredd 7.37 cm
Yttermått djup 11.46 cm
Yttermått höjd 12.7 cm
Vikt 1.11 kg
