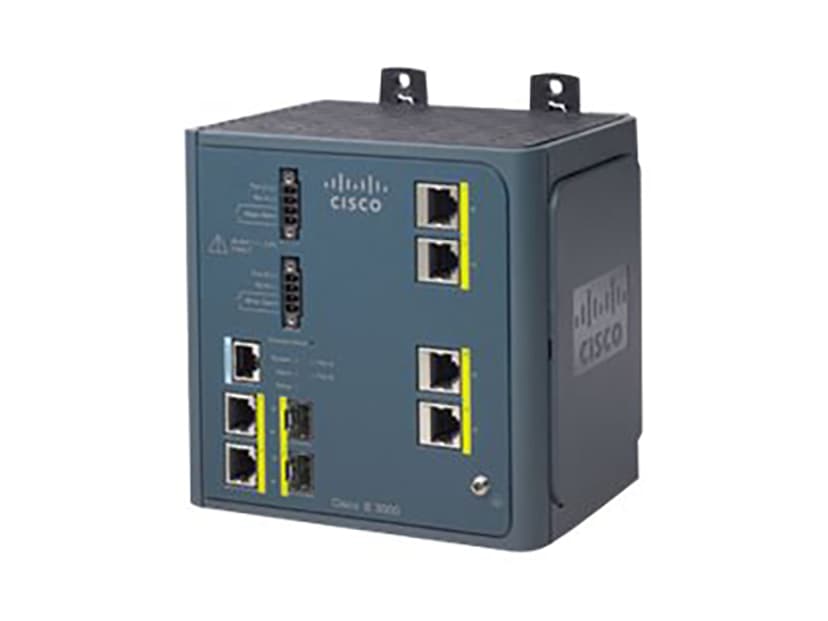

Cisco Industrial Ethernet 3000 Series

28 495 kr Exkl. moms 884 kr/mån (Vid hyra 36 månader)
  • Lagerstatus: Beställningsvara
  • Frakt från: 139 kr
  • Artikelnr.
  • 5010926352
  • Tillv. art. nr.
  • IE-3000-4TC-E

Produktinformation

The Cisco Industrial Ethernet 3000 (IE 3000) Series Switches are a new family of switches that provide a rugged, easy-to-use, secure switching infrastructure for harsh environments. The Cisco IE 3000 family features industrial design and compliance, tools for ease of deployment, management, and replacement; and network security based on open standards. The Cisco IE 3000 is an ideal product for industrial Ethernet applications, including factory automation, intelligent transportation systems (ITSs), substations, and other deployments in harsh environments.

Specifikationer

Allmänt
Tillverkare Cisco
Rackmonteringssats Tillval
Nätverk / Avancerad omkoppling Lager 3
Extra funktioner VLAN support, IGMP snooping, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Virtual Route Forwarding-Lite (VRF-Lite), Dynamic ARP Inspection (DAI), PROFINET v2
General / Compliant Standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 1588v2
Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH-2
General / MAC Address Table Size 8K
Ports 4 x 10/100 + 2 x combo Gigabit SFP
General / Subtype Fast Ethernet
Rackmonteringskit Valfritt
Nätverk och kommunikation
Protokoll för administration på distans SNMP 1, SNMP 2, HTTPS, SSH-2, Telnet, SNMP 3, HTTP
Standarder som följs
Kompatibel standard CSA, UL, TUV GS, C-Tick, BSMI CNS 13438 Class A, CISPR 24, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, NOM, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, KCC, UL 508, FCC Part 15 A, ANATEL, CSA C22.2 No. 60950-1, CISPR 11, AS/NZS 3548 Class A, CSA 22.2 No. 142, EN 61326-1, EN 61000-4-9, EN 61000-4-16, EN 61000-4-29, EN50155, IP20, EN 50121-4, Directive 2011/65/EU, VCCI Class A, KN24, IEC 61000-4-9, KN22 Class A, NEMA TS-2, China RoHS, EN 50121-3-2, IEC 61000-4-10, EN 61000-4-10, IEC 61000-4-17, EN 61000-4-17, IEC 61000-4-18, EN 61000-4-18, IEC 61000-4-29, IEC 61000-4-16, IEC 61850-3, EN 60945, IEC 60533
Expansion/Anslutning
Anslutningar 4 x 100Base-TX - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 2 x - SFP
Expansionsplatser 2 (total) / 2 (free) x Expansion Slot
Mått och vikt
Yttermått bredd 15.2 cm
Yttermått djup 11.2 cm
Yttermått höjd 14.7 cm
Vikt 2 kg
Service och support
Service & support 5 års garanti
General
RAM 128 MB
Flash Memory 64 MB
Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Nätverk
Antal portar 4
Formfaktor DIN-skenmonterbar
Jumbo Frame-support 9018 byte
Managerbar Ja
Nätverksprotokoll EIGRP for IPv6, OSPF for IPv6, PBR (policy-based routing), RIPng, OSPF, IGRP, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, PIM-SM, PIM-DM
