52 495 kr
Frakt från 139 kr
Hyr från 1 630 kr/månad i 36 månader
Lenovo artikelnr. 7X02A088EA
Dustin artikelnr. 5011151074

Snabbfakta

  • Processorfamilj
    Intel® Xeon Silver
  • Processorfrekvens
    2.2 GHz
  • Internminne
    32 GB
  • Hårddiskens gränssnitt
    SATA, Serial Attached SCSI (SAS)
  • RAID-stöd
    Ja
  • RAID-nivåer
    0, 1, 10, 5, 50, 6, 60
  • Chassityp
    Rack (1U)
  • Stöd för redundant strömförsörjning (RPS)
    Ja
  • Strömförsörjning
    750 W
  • Processorkärnor
    10

Byggd för seriös business med dynamisk mångsidighet







Features

? Versatile and scalable to grow with your business needs
? Optimized system design to meet performance and price points for almost any workload
? Shared components across the ThinkSystem portfolio for reduced parts inventory, quicker servicing, and higher availability
? Leadership systems management that leverages industry standards, such as RedFish
? Highly energy-efficient, with ASHRAE A2 compliance, and A4 compliance (with limitations) for up to 45°C continuous operation






Highly versatile

Featuring the largest storage capacity and highest performance in Lenovo’s 1U server portfolio, Lenovo ThinkSystem SR630 excels at many workloads.

With a wide selection of processors, drives, and interconnects, it helps you: 1) transform resources into services, using validated designs for hybrid cloud; 2) perform analytics on streaming data, using validated designs for Big Data; 3) improve performance of virtualized transactional systems, using validated designs for OLTP databases; or 4) simplify storage scale-out, using configuration guides for hyperconverged infrastructure (HCI) or software-defined storage (SDS).




Highly flexible

ThinkSystem SR630 includes two powerful Intel® Xeon® processor Scalable family CPUs with 27 percent more cores, twice the memory capacity and 50 percent more bandwidth than the prior generation.

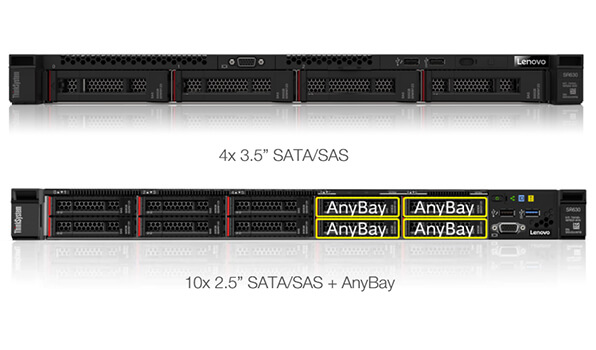

It has up to four§ PCIe 3.0 slots for I/O flexibility. Unique Lenovo AnyBay technology provides optimized storage flexibility and performance, with up to 12 SFF or 4 LFF SAS/SATA HDDs/SSDs. Four direct-connect NVMe ports on the motherboard provide ultra-fast read/writes with NVMe drives and reduce costs by eliminating PCIe switch adapters. Plus, storage can be tiered for greater application performance, to provide the most cost-effective solution. Optional mirrored M.2 boot drives ensure reliability and quick OS initialization. SR630 also supports modular LOM, ML2, and PCIe network adapters. To reduce energy costs, it features 80 PLUS Platinum and Titanium PSUs, and continuous operation at 45°C.






Easily managed


Lenovo XClarity Controller is an all-new hardware embedded management engine common in every ThinkSystem server. XClarity Controller features an uncluttered graphical user interface, industry standard Redfish-compliant REST APIs, and enables booting in half the time of prior generation servers, with up to 6x faster firmware updates.

Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking. Via reusable patterns and policies, it ramps up and scales infrastructure provisioning and maintenance. It serves as a central integration point to extend your data center management processes to physical IT. Running XClarity Integrators in external IT applications, or integrating through REST APIs, helps you further speed services provisioning, streamline IT management, and contain costs.

Lenovo servers continue to be the industry’s #1 most reliable?, with the industry’s highest customer satisfaction rating.

Features


  • Large memory capacity
  • Vast storage capacity
  • Versatile storage configurations/AnyBay
  • Flexible I/O configurations
  • Scalable networking configurations
  • Enterprise-class RAS features
  • XClarity systems management





    Notis: Bilder och text avser plattformen, vänligen se specifikation för närmare information om bestyckning, kvantitet och liknande.
  • Lenovo

    Lenovo

    Lenovo grundades ett väldigt bra årtal enligt oss, de grundades nämligen samma år som Dustin, 1984. Sedan dess har vi båda kämpat för att leverera bra teknik och kundupplevelser, vilket gör det självklart för oss att ha Lenovo som partner.

    Se mer från Lenovo

    Specifikation ThinkSystem SR630

    Allmänt

    Varumärke
    Produktlinje
    ThinkSystem

    Processor

    Processortillverkare
    Intel
    Processorfamilj
    Intel® Xeon Silver
    Processor
    4210
    Processorgenerering
    Intel Xeon Scalable 2nd Gen
    Processorfrekvens
    2.2 GHz
    Processorkärnor
    10
    Processorboostfrekvens
    3.2 GHz
    Antal processorer installerade
    1
    Processorns cache
    13.75 MB
    Värmeavledningseffekt (TDP)
    85 W
    Högsta internminne som stöds av processorn
    1024 GB
    Processortrådar
    20
    Execute Disable Bit-säkerhet
    Ja
    Minnestyper som stöds av processorn
    DDR4-SDRAM
    Minnesklockfrekvens som stöds av processorn
    2400 MHz
    Inbäddade alternativ
    Ja
    Processorsockel
    LGA 3647 (Socket P)
    Processorlitografi
    14 nm
    Processorns driftlägen
    64-bit
    Processorns kodnamn
    Cascade Lake
    TCASE
    78 °C
    Högsta antal PCI Express-platser
    48
    Processorns förpackningsstorlek
    76.0 x 56.5 mm
    Stödda instruktionsset
    AVX-512
    Skalbarhet
    2S

    Minne

    Internminne
    32 GB
    Typ av internminne
    DDR4-SDRAM
    Minne klockhastighet
    2666 MHz
    Minneslayout
    1 x 32 GB

    Lagringsmedia

    Hårddiskstorlek som stöds
    2.5 "
    Hårddiskens gränssnitt
    SATA, Serial Attached SCSI (SAS)
    RAID-stöd
    Ja
    Byte under drift (hotswap)
    Ja
    RAID-nivåer
    0, 1, 10, 5, 50, 6, 60
    Hårddiskens storlek
    2.5 "
    RAID-kontroller som stöds
    930-8i 2GB

    Grafiken

    Ombord grafikkort
    Ja
    Ombord grafikkort modell
    Ej tillgänglig

    Nätverk

    Nätverksansluten (Ethernet)
    Ja
    Kabelteknik
    10/100/1000Base-T(X)

    Anslutningar

    Antal USB 2.0 anslutningar
    1
    Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar
    3

    Expansionsplatser

    PCI Express-kortplatser version
    3.0

    Logistikdata

    Harmonized System (HS)-kod
    84714100

    Design

    Chassityp
    Rack (1U)
    Rackmontering
    Ja
    Produktens färg
    Silver, Svart

    Programvara

    Kompatibla operativsystem
    Microsoft Windows Server 2016 and 2019, Red Hat Enterprise Linux 7, SUSE Linux Enterprise Server 12 and 15, VMware vSphere (ESXi) 6.5 and 6.7.

    Processor specialfunktioner

    Förstärkt Intel Speedstep Technology
    Ja
    Intel® Virtualization Technology for Directed I/O (VT-d)
    Ja
    Intel® Trusted Execution Technology
    Ja
    Intel® VT-x med utökad Sida Tabeller (EPT)
    Ja
    Intel® 64
    Ja
    Intel Virtualization Technology (VT-x)
    Ja
    Intel® Hyper Threading Technology (Intel® HT Technology)
    Ja
    Intel® Turbo Boost Technology
    2.0
    Intel® AES nya instruktioner (Intel® AES-NI)
    Ja
    Intel® TSX-NI
    Ja
    ARK-ID för processor
    193384

    Prestanda

    Prestandahantering
    XClarity
    Trusted Platform Module (TPM)
    Ja
    Trusted Platform Module (TPM)-version
    1.2

    Strömtillförsel

    Stöd för redundant strömförsörjning (RPS)
    Ja
    Antal huvudnätaggregat
    1
    Strömförsörjning
    750 W
    Antal redundanta nätaggregat som stöds
    2
    Strömförsörjning ingångsfrekvens
    50 - 60 Hz

    Hållbarhet

    Hållbarhetscertifiering
    ENERGY STAR

    Vikt & dimension

    Bredd
    434 mm
    Djup
    715 mm
    Höjd
    43 mm
    Det finns inga tillbehör för denna produkt.
