Lenovo ThinkSystem ST550
Xeon Silver 10-kärnig 16GB
Prestanda och flexibilitet i ett kompakt format.
-
- Frakt från: 139 kr
- Artikelnr.
- 5011151072
- Lenovo
- Tillv. art. nr.
- 7X10A07GEA
Produktinformation
ThinkSystem ST550 är en Enterpriseklassad och skalbar towerserver som passar utmärkt på kontoret tack vare sin tysta design, eller i ett rack där den endast tar upp 4U utrymme. ST550 är mycket flexibel med sina olika lagringsalternativ med stöd för HDD, SSD och NVMe i olika formfaktorer samt flera grafikkortsalternativ för bland annat VDI. Med Lenovo XClarity som är inbyggt i varje ThinkSystem-server hanteras servern centralt.
Highlights
? Optimized system design to meet performance and cost points for almost any workload
? The latest processor and memory technologies, along with NVMe drives, offer tremendous performance
? AnyBay technology enables great flexibility in storage configurations
? Advanced security technologies, including lockable bezel, Kensington lock slot, chassis intrusion switch, and TPM 1.2/2.0
? Office-quiet acoustics and compact size make it ideal for under-desk, deskside, or data center rack-mount use
Enterprise enabled, ROBO ready
The Lenovo ThinkSystem ST550 is a scalable 4U tower server that features powerful Intel® Xeon® processor Scalable family CPUs. It provides the performance and reliability you expect from the data center, but optimized for office environments, with physical security and whisper-quiet operation. Its compact footprint uses 37 percent less space than its predecessor*, making it ideal for under-desk, deskside, or rack-mount use. ST550 is ideal for email/file/print and web serving, IT infrastructure, virtualization, VDI, and private cloud.
Compact, secure, flexible

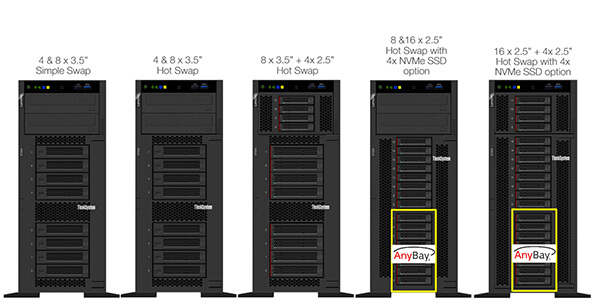

ST550 supports up to 96.4TB of internal storage capacity, and Lenovo AnyBay technology enables the mixing and matching of storage types (U.2/SAS/SATA) in the same bays. Up to 6x PCIe adapter slots and multiple hardware and software RAID options offer the flexibility you need for NICs, GPUs, and other adapters.
Physical and software security technologies, including lockable security bezel, Kensington lock slot, chassis intrusion switch, and TPM 1.2/2.0, are ideal for remote locations without the protection of a data center. ST550 also offers money-saving features, such as highly energy-efficient 80 PLUS Platinum and Titanium hot-swap PSUs, continuous operation up to 45°C, and easy centralized management via XClarity software.
Easily managed

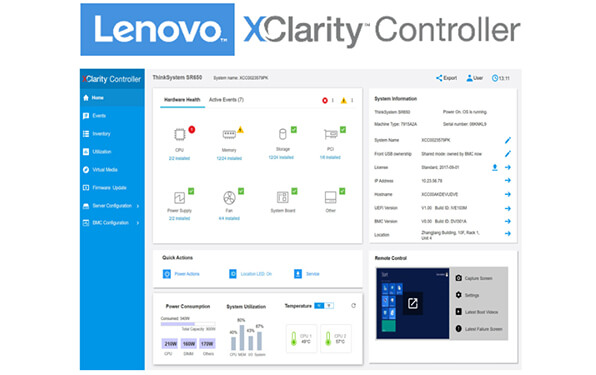

Lenovo XClarity Controller is an all-new hardware embedded management engine common in every ThinkSystem server. XClarity Controller features an uncluttered graphical user interface, industry standard Redfish-compliant REST APIs, and enables booting in half the time of prior generation servers, with up to 6x faster firmware updates.
Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking. Via reusable patterns and policies, it ramps up and scales infrastructure provisioning and maintenance. It serves as a central integration point to extend your data center management processes to physical IT. Running XClarity Integrators in external IT applications, or integrating through REST APIs, helps you further speed services provisioning, streamline IT management, and contain costs.
Lenovo servers continue to be the industry’s #1 most reliable?, with the industry’s highest customer satisfaction rating.
Features
Notis: Bilder och text avser plattformen, vänligen se specifikation för närmare information om bestyckning, kvantitet och liknande.
487931.pdfSpecifikationer
| Allmänt | |
|---|---|
| Tillverkare | Lenovo |
| Produktserie | Lenovo ThinkSystem ST550 |
| Modell | 7X10 |
| Produkttyp | Server |
| Processor | |
| CPU Tillverkare | Intel |
| Processortyp | Xeon Silver |
| Processormodell | 4210 |
| Klockfrekvens | 2.2 GHz |
| Turbofrekvens | 3.2 GHz |
| Antal kärnor | 10-kärnig |
| Cacheminne per processor | 13.75 MB |
| Total cachestorlek | 13.75 MB |
| Cacheminne typ | L3-cache |
| Antal processorer | 1 |
| Max antal processorer som stöds | 2 |
| Server skalbarhet | 2-vägs |
| Processorfunktioner | Intel Turbo Boost Technology 2, Hyper-Threading-teknik |
| RAM | |
| Minnesstorlek | 16 GB |
| Maximal minnesstorlek | 384 GB |
| RAM-stöd med olika minnestekniker | 384 GB registrerad - ECC, 768 GB Load-Reduced - ECC |
| Minneskonfiuguration | 1 x 16 GB |
| Antal minnesplatser | 12 |
| Tomma minnesplatser | 11 |
| Minnestyp & formfaktor | DDR4 SDRAM |
| Data Integrity Check | ECC |
| Minnesfrekvens | 2666 MHz |
| Minnesegenskaper | Registered, Memory Mirroring, Memory Sparing, Mixing of different types of memory modules is not supported, Slots 7 - 12 are available in two-processor configuration only |
| RAID-kontroller | |
| RAID-kontroller | ThinkSystem RAID 930-8i |
| Busstyp | PCI Express 3.0 x8 |
| Diskanslutning | Serial ATA-600 / SAS 3.0 |
| Antal diskar | 8 |
| RAID-kontrollercache | 2 GB |
| RAID-stöd | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, JBOD |
| Installerat antal kontrollerkort | 1 |
| Lagring | |
| Kapacitet | 0 GB |
| Primär hårddisk | Ingen HDD |
| Optisk enhet | Ingen optisk drivenhet |
| Nätverk | |
| Ethernetkontroller | Intel X722 |
| Ethernetportar | 2 x Gigabit Ethernet |
| Länkhastighet | Gigabit Ethernet |
| Fjärradministration | XClarity Controller (XCC) Standard |
| Protokoll för administration på distans | IPMI 2.0, SNMP 3, CIM |
| Nätverksfunktioner | Wake on LAN (WoL) |
| Chassi | |
|---|---|
| Formfaktor | Tower |
| Höjd (U-format) | 4 |
| Antal hotswapfack | 8 |
| Lagringstyp | Hot-swap |
| Antal fack på framsidan | 2 |
| Formfaktor och gränssnitt | 2.5", SAS |
| Lagringsportar | 2 (totalt)/ 2 (ledig) x extern 5.25" x 1/2H, 8 (totalt)/ 8 (ledig) x hot-swap 2.5" |
| Expansionsportar | 1 (totalt)/ 1 (ledig) x PCIe 3.0 x8 - halvlängd, helhöjd, 1 (totalt)/ 1 (ledig) x PCIe 3.0 x16 - halvlängd, helhöjd, 1 (totalt)/ 1 (ledig) x PCIe 3.0 x8 - hellängd, helhöjd, 1 (totalt)/ 1 (ledig) x PCIe 3.0 x16 - hellängd, helhöjd (x8-läge, 2 processorer måste vara installerade), 1 (totalt)/ 1 (ledig) x PCIe 3.0 x16 - fullängd, fullhöjd, dubbelvidd, 1 (totalt)/ 1 (ledig) x PCIe 3.0 x16 - fullängd, fullhöjd, dubbelvidd (2 processorer måste vara installerade) |
| Stöld-/inbrottsskydd | Plats för säkerhetslås (kabellås säljs separat), Intrångsomkopplare till chassi |
| Typ av säkerhetsfunktion | Kensington säkerhetsplats |
| Nätaggregat | |
| Nätaggregatstyp | Nätaggregat - hot-plug |
| Installerat antal nätaggregat | 1 |
| Max antal nätaggregat som stöds | 2 |
| Effekt | 550 Watt |
| Schema för redundant ström | 1+1 (med valfritt nätaggregat) |
| Redundans | Tillval |
| 80 PLUS-certifiering | 80 PLUS Platinum |
| Användning | |
| Anslutningar | 1 x VGA, 1 x hantering - RJ-45, 2 x LAN (Gigabit Ethernet), 5 x USB 2.0 (1 på framsidan, 4 på baksidan), 4 x USB 3.0 (1 på framsidan, 2 på baksidan, 1 intern) |
| Videoport | VGA |
| Inbyggda enheter | Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Operativsystem | Inget operativsystem |
| Färg | Svart |
| Standarder | RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, GB 17625.1, GB 9254 Class A, VCCI Class A, GB 4943.1, BSMI CNS 14336-1, IEC60950-1, EN61000-3-2, EN61000-3-3, TUV GS, BSMI CNS 13438 Class A, NOM-019, EK1-ITB2000, Energy-Related Products (ErP) Lot 3, EN55024, KN35, ICES-003 issue 6 Class A, AS/NZS CISPR 32 Class A, KN32 Class A, EN 55032 Class A, CISPR 32 Class A, EN 62368-1:2014, BSMI CNS 15663, TR CU 020/2011, TR CU 004/2011, JESL, CB, AS/NZS 60950-1, CCC |
| Grafikprocessor | Matrox G200 |
| Energy Star-certifierad / version | 2.1 |
| Dimensioner & Vikt | |
| Bredd | 17.58 cm |
| Djup | 66.64 cm |
| Höjd | 42.55 cm |
| Vikt | 36.9 kg |
| Garanti | |
| Garanti | På platsen |
| Garanti detalljer | Begränsad garanti - 3 år - på platsen - svarstid: nästa arbetsdag |
