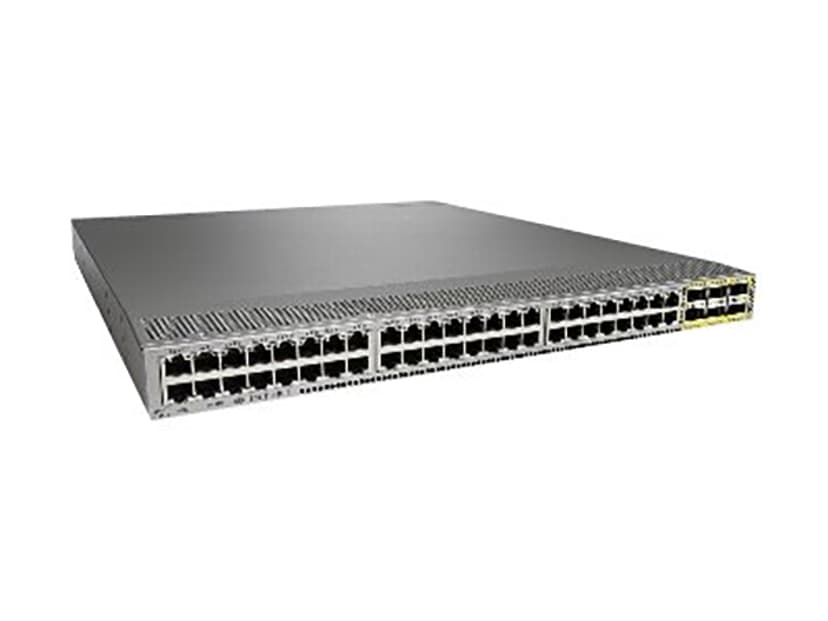

Cisco Nexus 3172TQ

141 995 kr 4 348 kr/mån (Vid hyra 36 månader)
  • Lagerstatus: Beställningsvara
  • Frakt från: 139 kr
Notera att denna produkt är en beställningsvara och kan därför inte returneras. Beställningen av produkten kan inte annulleras efter det att du har bekräftat din beställning. Du kan läsa mer i våra handelsvillkor, avsnitt 7.
  • Artikelnr.
  • 5010926503
  • Tillv. art. nr.
  • N3K-C3172TQ-10GT

Snabbfakta

Antal portar
72

Nyckelfunktioner

  • Wire-rate Layer 2 and 3 switching on all 72 10 Gigabit Ethernet ports
  • High availability
  • High performance

Produktinformation

The Cisco Nexus 3172TQ switch is a dense, high-performance Layer 2 and 3 10 and 40-Gbps switch that is a member of the Cisco Nexus 3100 switches. The Nexus 3100 switch is the Cisco Nexus 3000 series switches and offers improved port density, scalability, and features compared to the first-generation switches. It supports both forward and reverse airflow schemes with AC and DC power inputs. The Cisco Nexus 3172TQ is well suited for data centers that require a cost-effective, power-efficient line-rate Layer 2 and 3 top-of-rack (ToR) switch.Cisco Nexus 3172TQ is a 10GBASE-T switch with 48 10GBASE-T ports and 6 Quad SFP+ (QSFP+) ports. This switch is well suited for customers who want to reuse existing copper cabling while migrating from 1-Gbps to 10-Gbps servers.

Specifikationer

Allmänt
Tillverkare Cisco
Krypteringsalgoritm AES
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
General / Subtype 10 Gigabit Ethernet
Nätverk / Avancerad omkoppling Lager 3
Strömtillförsel
Power / Power Redundancy Valbar
General
Compliant Standards IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3ba
Encryption Algorithm AES
Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Performance Switching capacity : 1.4 Tbps
Ports 48 x 10GBase-T + 6 x QSFP+
Features VLAN support, Syslog support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, EIGRP Stub Routing, Equal-Cost Multipath (ECMP), Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), LACP support, LLDP support, Hot Standby Router Protocol (HSRP) support, redundant hot swappable fans, Virtual PortChannel (vPC) technology
Expansion / Connectivity
Interfaces 48 x 10GBase-T - RJ-45 ¦ 6 x 40Gbit LAN - QSFP+ ¦ 1 x 1000Base-T - RJ-45 - management ¦ 1 x serial (RS-232) - management ¦ 1 x USB
Compliant Standards
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, FCC CFR47, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, GB 49493, KN22 Class A, EN 300386
Nätverk och kommunikation
Protokoll för administration på distans SNMP 1, SNMP 2, RMON, SSH-2, CLI, Telnet, SNMP 3
Nätverk
Antal portar 72
Formfaktor Rackmonterbar
Jumbo Frame-support 9216 byte
Managerbar Ja
Nätverksprotokoll PIM-SSM, MSDP, PBR (policy-based routing), RIP-2, EIGRP, VRRP, OSPFv2, PIM-SM, Statisk IP-routing
Mått och vikt
Yttermått bredd 43.9 cm
Yttermått djup 50.5 cm
Yttermått höjd 4.4 cm
Vikt 10 kg
