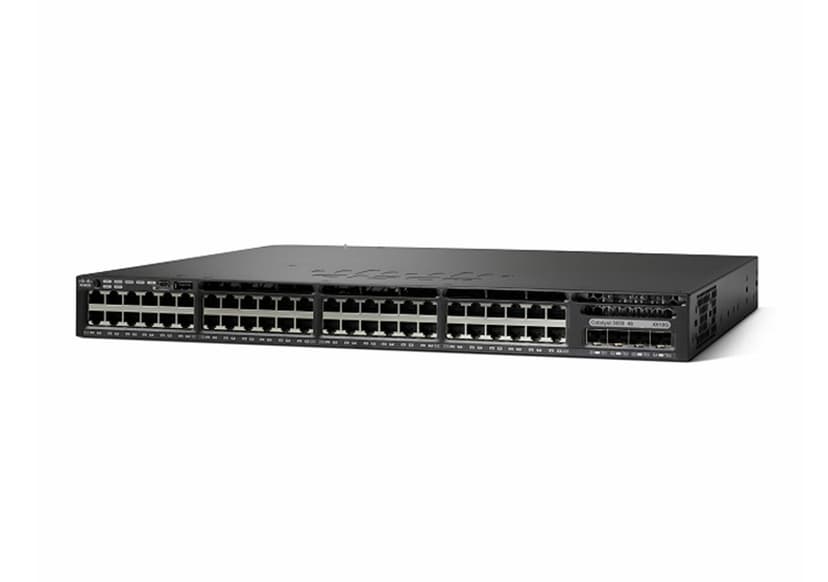

Cisco Catalyst 3650-48FD-L

49 995 kr 1 551 kr/mån (Vid hyra 36 månader)
  • Lagerstatus: Beställningsvara
  • Frakt från: 139 kr
  • Artikelnr.
  • 5010840033
  • Tillv. art. nr.
  • WS-C3650-48FD-L

Snabbfakta

Antal portar
48
SFP Standard
SFP+
Fläkt
Ja

Nyckelfunktioner

  • Converged wired plus wireless access
  • Cisco StackWise-160 technology
  • Efficient switch operation
  • Environmentally responsible
  • Network management tools
  • Superior QoS

Produktinformation

The Cisco Catalyst 3650 series is the enterprise-class standalone and stackable access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 is built on the advanced Cisco StackWise-160, and takes advantage of the Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The Cisco Catalyst 3650 series switch supports full IEEE 802.3at Power over Ethernet Plus (PoE+), and offers modular and field-replaceable redundant fans and power supplies. It can help you increase wireless productivity and reduce your TCO.

Specifikationer

Allmänt
Tillverkare Cisco
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
General / MAC Address Table Size 32K
General / Subtype Gigabit Ethernet
Rackmonteringssats Inkluderat
Strömtillförsel
Power / Power Redundancy Valbar
General
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM 4 GB
Flash Memory 2 GB
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Performance Switching capacity : 176 Gbps ¦ Forwarding performance : 130.95 Mpps
Ports 48 x 10/100/1000 (PoE+) + 2 x 10 Gigabit SFP+
Miscellaneous / Rack Mounting Kit Included
Features Full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), DiffServ Code Point (DSCP) support
Expansion / Connectivity
Interfaces 48 x 1000Base-T - RJ-45 - PoE+ - 30 W ¦ 1 x USB - Type A ¦ 1 x serial (console) - RJ-45 - management ¦ 1 x management (Gigabit LAN) - RJ-45 - management ¦ 1 x management (mini-USB) - Type B - management ¦ 2 x 1000Base-X - SFP - uplink ¦ 2 x 10GBase-X - SFP+ - uplink
Expansion Slots 1 (total) / 1 (free) x Stacking Module
Compliant Standards
Compliant Standards CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A
Service och support
Service & support Begränsad livstidsgaranti
Nätverk och kommunikation
Protokoll för administration på distans SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SSH, CLI, Telnet, SNMP 3, SNMP 2c
Nätverk
Antal portar 48
PoE (Power Over Ethernet) PoE+
SFP Standard SFP+
Fläkt Ja
SFP+ portar 2 st
Formfaktor Skrivbordsmodell, Rackmonterbar
Jumbo Frame-support 9198 byte
Managerbar Ja
PoE portar 48 st
PoE Budget 775 Watt
Nätverksprotokoll Statisk IP-routing
Stapelbar Staplingsbar
Mått och vikt
Yttermått bredd 44.5 cm
Yttermått djup 48.6 cm
Yttermått höjd 4.4 cm
Vikt 7.8 kg
