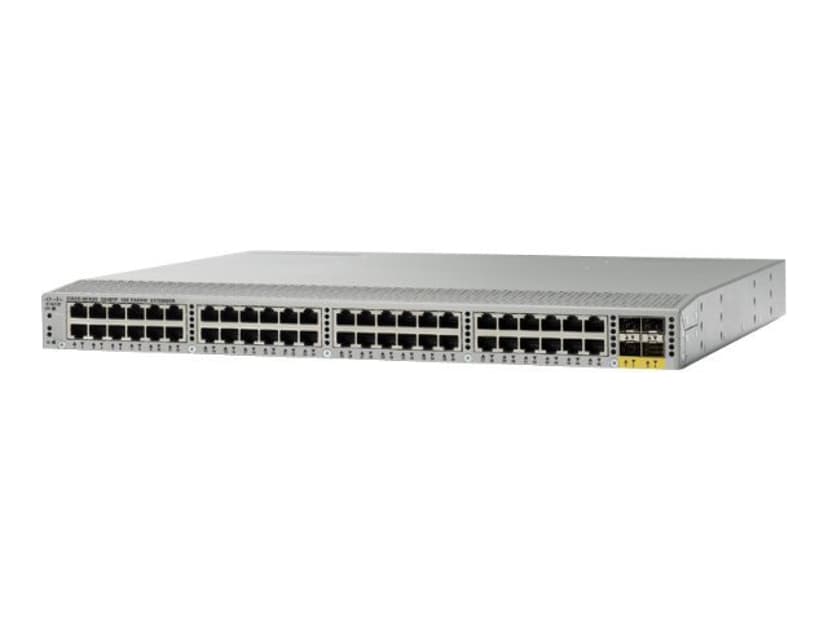

Cisco Nexus 2232PP 10GE Fabric Extender

58 995 kr 1 832 kr/mån (Vid hyra 36 månader)
  • Lagerstatus: Beställningsvara
  • Frakt från: 139 kr
  • Artikelnr.
  • 5010617835
  • Tillv. art. nr.
  • N2K-C2232PP-10GE




  • 32 10 Gigabit Ethernet and Fiber Channel over Ethernet (FCoE) server access ports using SFP+ SR and LR optical or CX1 direct-attach copper interconnects
  • 8 10 Gigabit Ethernet and FCoE uplink ports using SFP+ SR and LR optical or CX1 direct-attach copper interconnects
  • Low-latency, cut-through switching, ideal for 10 Gigabit Ethernet server and pass-through blade server connectivity
  • Host PortChannel and vPC (up to 8 PortChannel members per PortChannel, with no restriction on the number of PortChannels)
  • Highly scalable virtual modular system with up to 384 10 Gigabit Ethernet and FCoE ports
  • Front-to-back cooling compatible with data center hot-aisle and cold-aisle designs, with all switch ports at the rear of the unit in close proximity to server ports
  • Hardware capable of back-to-front cooling


  • Dual-redundant power supplies included in default configuration
  • All user-serviceable components accessible from the front panel
  • Hardware capable of Gigabit Ethernet on all ports
  • Operates as a remote I/O module, extending the switch fabric for Cisco Nexus 5010 and 5020 Switches
  • Can be mixed and matched with different types of Cisco Nexus 2000 Series Fabric Extenders to the same parent switch to support various types of connectivity
  • Zero-touch provisioning, including configuration and upgrade


The Cisco Nexus 2232PP 10GE fabric extender expands the Cisco Nexus 2000 series fabric extenders product line to provide a unified server access platform across a range of 100 Megabit Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, unified fabric, rack, and blade server environments.The Cisco Nexus 2000 series fabric extenders behave as remote I/O modules for a parent Cisco Nexus 5000 series switch. The fabric extender is essentially an extension of the parent Cisco Nexus switch fabric, with the fabric extender and the parent Cisco Nexus switch together forming a virtual modular system.The Cisco Nexus 2000 series forwards all traffic to the parent Cisco Nexus 5000 series switch over 10 Gigabit Ethernet uplinks. Passing all traffic to the parent switch allows traffic to be shaped according to policies established on the parent Cisco Nexus 5000 series switch with a single point of management.


Tillverkare Cisco
Formfaktor Kan monteras i rack
Nätverkstyp Expansionsmodul
Compliant Standards
Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, RoHS, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1
Service och support
Service & support 1 år
Service & Support detaljer 1 år, Utbyte
Service & Support 1 år
Nätverk och kommunikation
Anslutningsteknik Kabelansluten
Datalänkprotokoll FCoE (Fibre Channel over Ethernet), 10 Gigabit Ethernet
Protokoll för administration på distans SNMP 1, SNMP 2, RMON, SNMP 3
Network & Communication
Networking / Features Flow control, uplink, auto-negotiation, VLAN support, IGMP snooping, Syslog support, Weighted Round Robin (WRR) queuing, Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support
Mått och vikt
Yttermått bredd 43.9 cm
Yttermått djup 45 cm
Yttermått höjd 4.4 cm
Vikt 8.3 kg
Form Factor Rack-mountable
