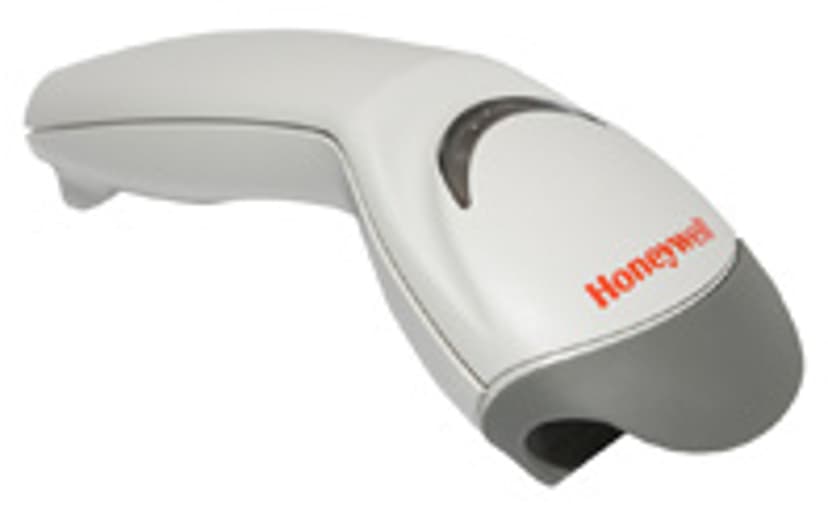

Honeywell Eclipse 5145 USB White

  • Lagerstatus: Skickas omgående 10 kvar
  • Frakt från: 139 kr
  • Artikelnr.
  • 5010134999
  • Tillv. art. nr.
  • MK5145-71A38-EU

Snabbfakta

Tillverkare
Honeywell
Färg
Light grey
Anslutningsteknik
Kabelansluten
Gränssnitt
USB
Skanner / Typ av skanningselement
Synlig laserdiod

Nyckelfunktioner

  • CodeGate
  • CodeSense
  • Powerlink cables
  • Flash ROM

Produktinformation

Metrologic's MS5145 Eclipse is a single-line, hand-held laser scanner. Equipped with Metrologic's patented CodeGate technology, Eclipse can be used in a wide variety of applications. CodeGate technology allows the user to easily target the desired bar code and complete the data transmission with a simple press of a button. This combination makes Eclipse a perfect selection for menu scanning, point-of-sale, document processing and inventory control.With Metrologic's state-of-the-art scanning technology embedded inside, the MS5145 Eclipse has a longer working range and a wider scan field than a typical CCD. The width of the scan line grows as the scanner moves further away from bar codes. In addition, the laser beam pulses which make lining up bar codes easy, and when the scanner senses a bar code (CodeSense Mode), the laser beam automatically switches to scan mode and activates CodeGate to ensure high-speed scanning and accuracy. Standard features include PowerLink user-replaceable cables, and user-friendly programming using MetroSelect bar codes.

Specifikationer

Allmänt
Tillverkare Honeywell
Typ Handhållen streckkodsläsare
Skanner / Typ av skanningselement Synlig laserdiod
Skanner / Formfaktor Handdator
Typ av scanner Streckkodsskanner
Streckkodsläsare
Gränssnitt USB
Minimum Bar Bredd 4 mil
TTL Decoding Decoded
OK Notification LED indicator
Pitch (Degrees) 68
Skew (Degrees) 52
Barcode Reader
Barcode / Features Reduced Space Symbology (RSS), CodeGate, CodeSense
Barcode / Decode Capability EAN/JAN, Code 93, Matrix 2 of 5, Code 39, NW-7, RSS Code, Telepen, Code 32, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, MSI-Plessey, China Post, Trioptic Code, EAN-UCC Composite, Code 93i
Färg
Färg Light grey
Medföljande tillbehör
Medföljande kablar 1 x USB cable - 3 m
Lokalisering
Landslokation Europa
Medföljande programvara
Inkluderad mjukvara MetroSet2
Standarder som följs
Kompatibel standard cUL, RoHS, WEEE, OPOS, cULus
Miljö Parametrar
Lägsta temperatur vid drift 0 °C
Högsta temperatur vid drift 40 °C
Luftfuktighet vid drift 5 - 95% (icke kondens)
Drop Specificationer 1.5m
Anslutning
Anslutningsteknik Kabelansluten
Expansion/Anslutning
Anslutningar 1 x USB - Type A
Mått och vikt
Yttermått bredd 6.3 cm
Yttermått djup 16.9 cm
Yttermått höjd 5.1 cm
Vikt 0.1 kg
Service och support
Service & Support detaljer 3 år
Service & Support 3 år
