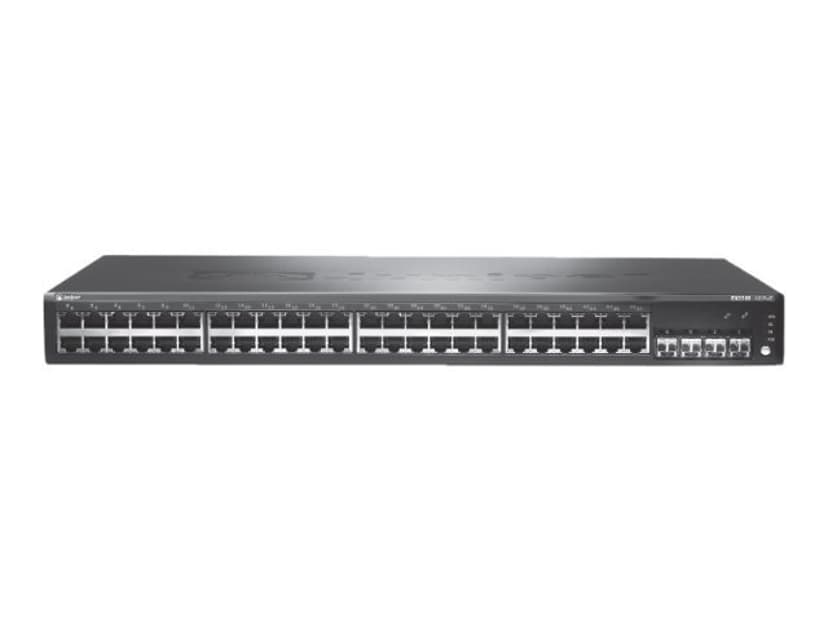

Juniper Networks EX2200 48xgige PoE 4xgbe uplink

17 995 kr 558 kr/mån (Vid hyra 36 månader)
  • Lagerstatus: Skickas inom 48h
  • Frakt från: 139 kr
  • Artikelnr.
  • 5010976771
  • Tillv. art. nr.
  • EX2200-48P-4G

Produktinformation

The EX2200 line of Ethernet switches, ideal for access-layer deployments in branch offices and campus networks, delivers a level of functionality and performance normally associated with higher-cost solutions.

Specifikationer

Allmänt
Tillverkare Juniper Networks
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2
General / MAC Address Table Size 8K
General / Subtype Gigabit Ethernet
Nätverk / Avancerad omkoppling Lager 3
General
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM 512 MB
Flash Memory 1 GB Flash
Authentication Method RADIUS, TACACS+, Extensible Authentication Protocol (EAP)
Ports 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Features Flow control, Layer 3 switching, Layer 2 switching, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, DiffServ support, store and forward, SNTP support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, temperature sensor, Redundant trunk group (RTG), Time Domain Reflectometry (TDR)
Expansion / Connectivity
Interfaces 48 x 1000Base-T - RJ-45 - PoE+ ¦ 4 x Gigabit LAN - SFP - uplink ¦ 1 x console - RJ-45 - management ¦ 1 x USB - Type A ¦ 1 x 100Base-TX - RJ-45 - management
Compliant Standards
Compliant Standards UL, CISPR 22 Class A, cUL, VCCI Class A ITE, EN55024, EN300-386, UL 60950-1, CSA C22.2 No. 60065, RoHS
Nätverk och kommunikation
Protokoll för administration på distans SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, HTTPS, TFTP, SSH-2, Telnet, SNMP 3, SNMP 2c, HTTP
Nätverk
Antal portar 48
PoE (Power Over Ethernet) PoE+
SFP Standard SFP
Fläkt Ja
SFP portar 2 st
Formfaktor Skrivbordsmodell
Managerbar Ja
PoE portar 48 st
PoE Budget 405 Watt
Nätverksprotokoll RIP-1, RIP-2, IGMP
Stapelbar Nej
Mått och vikt
Yttermått bredd 44.1 cm
Yttermått djup 25.4 cm
Yttermått höjd 4.5 cm
Vikt 4.5 kg
