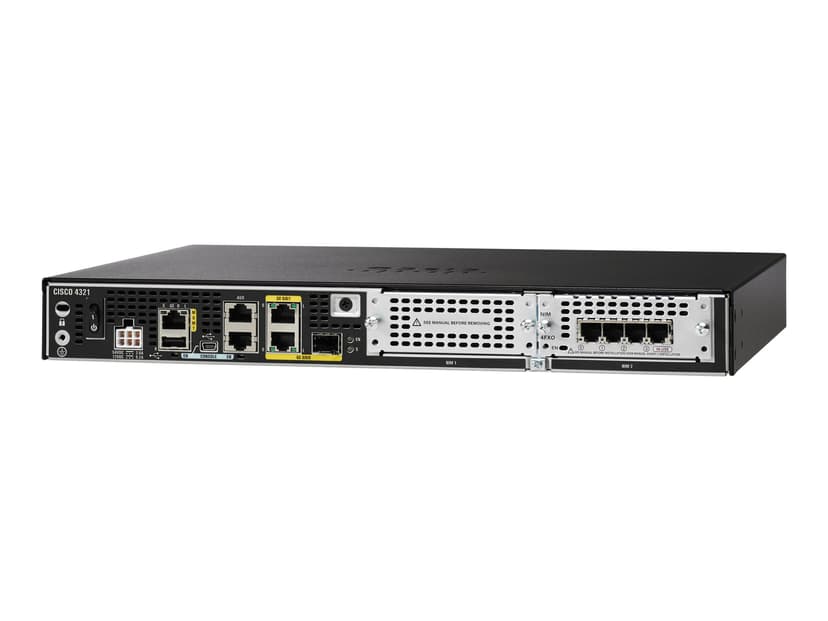

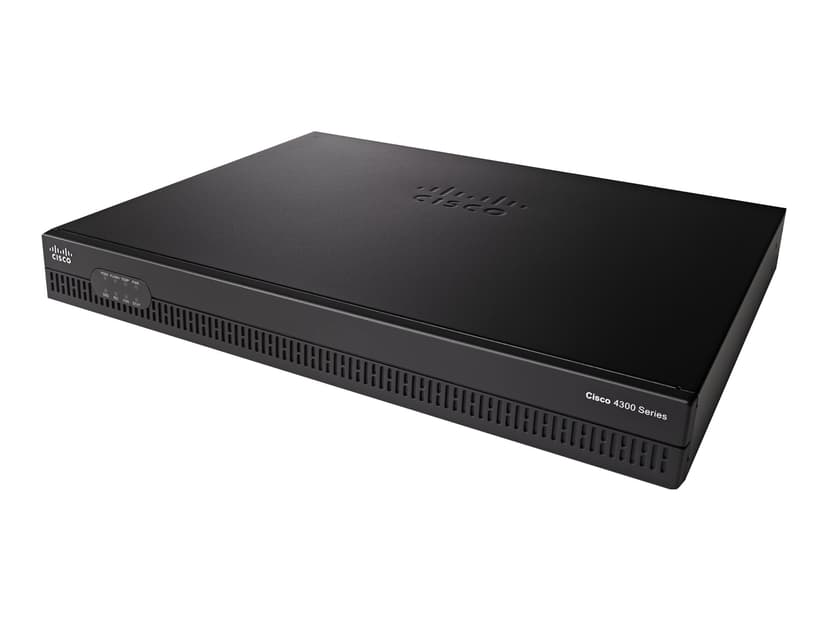

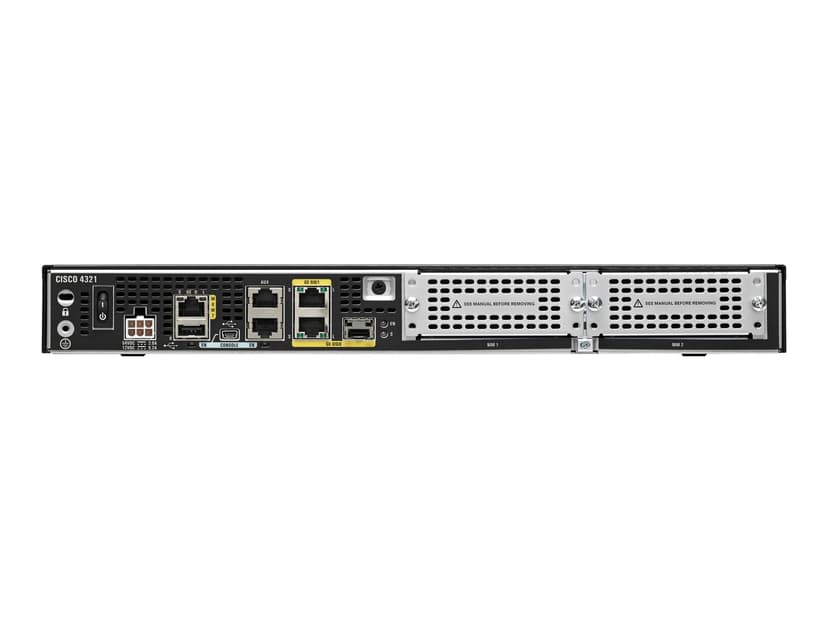

Cisco ISR 4321

15 495 kr Exkl. moms 480 kr/mån (Vid hyra 36 månader)
  • Lagerstatus: Beställningsvara
  • Frakt från: 139 kr
  • Artikelnr.
  • 5010926259
  • Tillv. art. nr.
  • ISR4321-VSEC/K9

Snabbfakta

Anslutningstyp
Kabelansluten
Länkprotokoll
Ethernet, Fast Ethernet, Gigabit Ethernet
VPN-protokoll
DHCP, IPSec, PPPoE
Mjukvara
Cisco IOS Security, Cisco IOS IP Base, Cisco IOS Unified Communications, Cisco Unified Border Element Enterprise Edition (10 sessioner)
Höjd (U-format)
1
Routingprotokoll
GRE, PIM-SSM, Statisk IPv4-routing, Statisk IPv6-routing, PBR (policy-based routing), IPv4-to-IPv6 Multicast, OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3
Funktioner
USB-port, Brandvägg, VPN-stöd

Nyckelfunktioner

  • High performance
  • Lower WAN expenditures
  • Superior and secure user application experiences
  • IT consolidation, space savings, and improved total cost of ownership (TCO)
  • Business continuity and increased resiliency

Produktinformation

The Cisco 4000 family Integrated Services Router (ISR) revolutionizes WAN communications in the enterprise branch. With amazing levels of built-in intelligent network capabilities and convergence, it specifically addresses the growing need for application-aware networking in distributed enterprise sites. These locations tend to have lean IT resources. But they often also have a growing need for direct communication with both private data centers and public clouds across diverse links, including Multiprotocol Label Switching (MPLS) VPNs and the Internet. The Cisco 4000 series ISRs consolidate many must-have IT functions, including network, compute, and storage resources. The high-performance, integrated routers run multiple concurrent IWAN services without slowing your data throughput.Cisco ISR 4321 features modular network interfaces with diverse connection options for load-balancing and network resiliency and modular interfaces with online removal and insertion (OIR) for module upgrades without network disruption.

Specifikationer

Allmänt
Tillverkare Cisco
Produktlinje Cisco ISR
Modell 4321
Produkttyp Router, Rackmonterbar
Hårdvaruspecifiation
Höjd (U-format) 1
RAM-typ DDR3 SDRAM
RAM-storlek 4096 MB
Maximal RAM-storlek 8 GB
Lagringskapacitet 4 GB
Max lagringskapacitet 8 GB
Expansionsplatser 1 (totalt)/ 1 (ledig) x ISC, 2 (totalt)/ 2 (ledig) x NIM, 1 (totalt)/ 0 (ledig) x DIMM 240-stifts
Rackmonteringssats Inkluderat
Nätverk
Anslutningstyp Kabelansluten
Länkprotokoll Ethernet, Fast Ethernet, Gigabit Ethernet
Anslutningar 1 x SFP (mini-GBIC), USB 2.0: 1 x 4-stifts USB typ A, Hanrering: 1 x konsol - mini-USB typ B, Seriell: 1 x aux - RJ-45, WAN / LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Seriell: 1 x konsol - RJ-45, Hanrering: 1 x RJ-45
Antal WAN-portar 2
Prestanda Aggregatgenomströmning: 50 Mbps
Användning
VPN-protokoll IPSec, DHCP, PPPoE
Mjukvara Cisco IOS Security, Cisco IOS IP Base, Cisco IOS Unified Communications, Cisco Unified Border Element Enterprise Edition (10 sessioner)
Routingprotokoll GRE, PIM-SSM, Statisk IPv4-routing, Statisk IPv6-routing, PBR (policy-based routing), IPv4-to-IPv6 Multicast, OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3
Funktioner USB-port, Brandvägg, VPN-stöd, Brandväggsskydd, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Monterbar på vägg, IPSec Virtual Private Network (VPN), Stöd för Access Control List (ACL), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), RADIUS-stöd, NetFlow, IPFIX, VLAN-stöd, Syslog-stöd, Stöd för IPv6
Administrationsprotokoll SNMP, RMON
Standarder IEEE 802.3, IEEE 802.1Q, IEEE 802.1ag, ANSI T1.101, ITU-T G.823, ITU-T G.824, IEEE 802.3ah, ICES-003 klass A, CS-03, R&TTE, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 3548 klass A, GB 4943, CAN/CSA C22.2 No. 60950-1, VCCI V-3, EN 61000, KN22, KN24, CNS 13438, CISPR 22 klass A, CISPR 24, EN55024, EN55022 klass A, EN50082-1, AS/NZS 60950-1
Färg Svart
Min driftstemperatur 0 °C
Max driftstemperatur 40 °C
Luftfuktighet vid drift 5 - 85%
Strömegenskaper
Strömförsörjningstyp Extern strömadapter
Spänning AC 120/230 V
Dimensioner & Vikt
Bredd 36.957 cm
Djup 29.464 cm
Höjd 4.455 cm
Vikt 3500 g
Garanti
Garanti 90 dagars garanti
Garanti detalljer Begränsad garanti - utbyte av delar i förväg - 90 dagar - svarstid: 10 dagar
