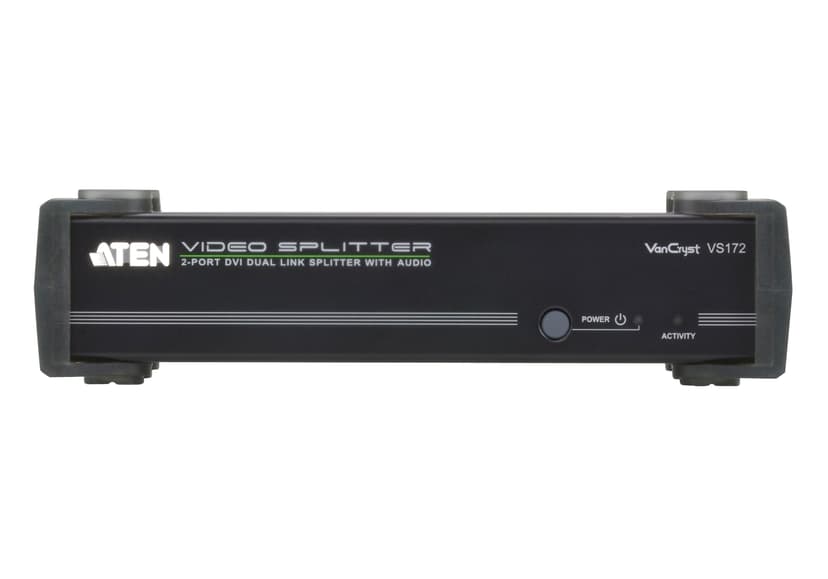

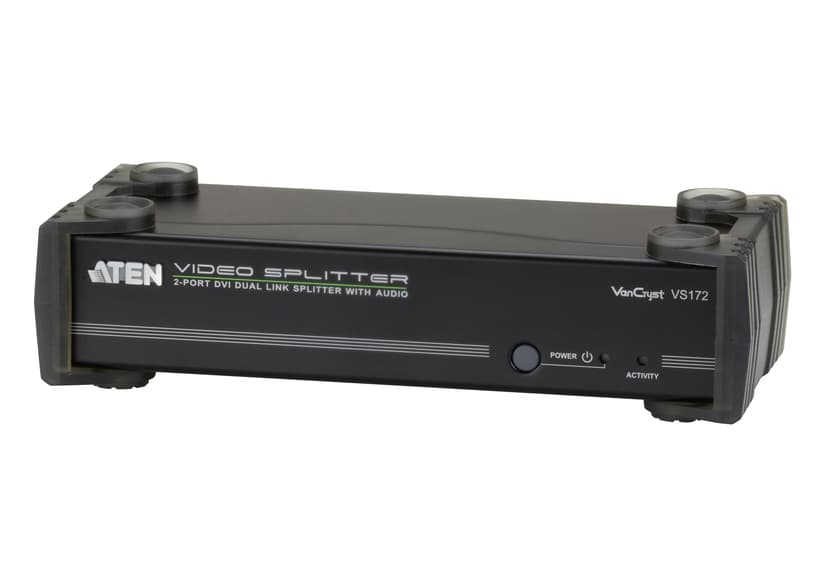

Aten VanCryst VS172

2 695 kr 84 kr/mån (Vid hyra 36 månader)
  • Lagerstatus: Skickas inom 48h
  • Frakt från: 139 kr
  • Artikelnr.
  • 5010881247
  • Tillv. art. nr.
  • VS172-AT-G

Snabbfakta

Tillverkare
ATEN Technology
Antal portar
2

Nyckelfunktioner

  • Displays DVI audio/video to multiple DVI-compatible monitors or projectors
  • Superior video quality
  • Cascadable to 3 levels - provides up to 8 video signals
  • Audio enabled
  • Features RS-232 serial port for command controls
  • RS-232 chain control - use RS-232 commands to control cascaded devices via a DVI cable
  • EDID expert - selects the optimum EDID settings via RS-232

Produktinformation

The VS172 2-port DVI dual link splitter with audio combines DVI quality video and audio, taking signals from an audio/video source and replicating them to two audio/video outputs. This video splitter uses dual link technology, which offers high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600.The built-in bi-directional RS-232 port on the rear panel allows the splitter to be controlled through a control unit, PC, and/or home automation/home theater software package for complete system integration.

Specifikationer

Allmänt
Tillverkare ATEN Technology
Max Resolution 2560 x 1600 @ 60 Hz
Extra funktioner HDCP kompatibel
Expansion / Connectivity

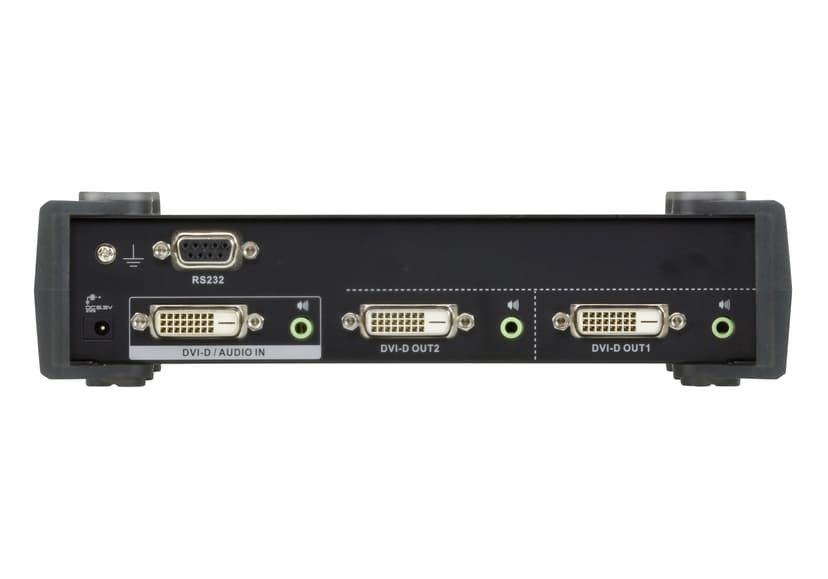

Interfaces 1 x DVI-D input ¦ 1 x audio input - mini-jack ¦ 2 x DVI-D output ¦ 2 x audio output - mini-jack ¦ 1 x serial (RS-232) - DB-9
Nätverk
Antal portar 2
Formfaktor Skrivbordsmodell
Stapelbar Kaskadbar
Underkategori Delade externa enheter och hubbar
Mått och vikt
Yttermått bredd 21 cm
Yttermått djup 8.8 cm
Yttermått höjd 5.55 cm
Vikt 0.68 kg
