6 995 kr 217 kr/mån (Vid hyra 36 månader)
  • Lagerstatus: Beställningsvara
  • Frakt från: 139 kr
  • Artikelnr.
  • 5010823519
  • Tillv. art. nr.
  • JG519A


Trådlös, Kabelansluten
Antal portar
Antal WAN-portar


  • Traffic policing: supports Committed Access Rate (CAR) and line rate
  • Congestion management: supports FIFO, PQ, CQ, WFQ, CBQ, and RTPQ
  • Weighted random early detection (WRED)/random early detection (RED): delivers congestion avoidance capabilities through the use of queue management algorithms
  • Other QoS technologies: support traffic shaping, FR QoS, and MP QOS/LFI

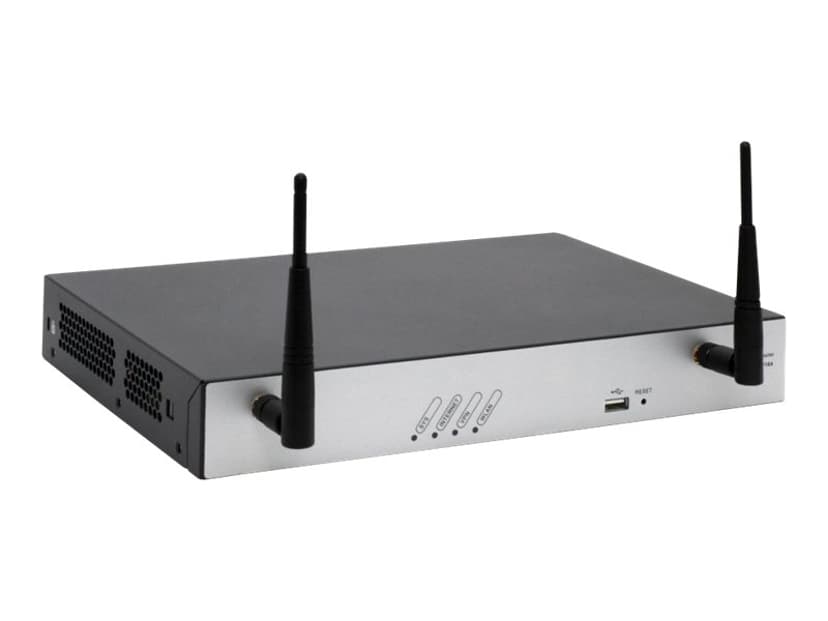

The HP MSR93x Router Series delivers a high-performance small-branch router providing integrated routing, switching, security, SIP, 802.11n WLAN connectivity, and 4G LTE/3G in a single unit. With its Converged Infrastructure, it enables faster time to service and enhanced performance while simplifying your network through a single management screen and zero-touch deployment. The MSR93x increases flexibility and agility, delivering extensive connectivity capabilities in a compact, fixed form factor. The MSR93x is based on open standards for seamless integration within small-branch deployment.


Nätverkstyp Router
Krypteringsalgoritm MD5, AES, IKE, TLS
Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, CLI
Färg Svart, Vit
Routingprotokoll OSPF, EGP, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, IGMPv3, GRE, OSPFv3, MSDP, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLD, BGP-4+, CIDR
Processor 1 x 533 MHz
Device Type Router - 4-port switch (integrated)
Flash Memory 128 MB
Encryption Algorithm MD5, AES, IKE, TLS
Authentication Method RADIUS, PAP, CHAP, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features Firewall protection, Layer 2 switching, DHCP support, NAT support, VPN support, BOOTP support, ARP support, MPLS support, IGMP snooping, Syslog support, traffic shaping, port mirroring, IPv6 support, Weighted Fair Queuing (WFQ), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Committed Access Rate (CAR), MLD snooping, Unicast Reverse Path Forwarding (URPF), IPv4 support, Management Information Base (MIB), loop prevention, port isolation, packet storm protection, Class of Service (CoS), Loopback, IGMP proxy, Dynamic Virtual Private Network (DVPN), Network Quality Analyzer (NQA), Multicast Border Gateway Protocol (MBGP), WWAN support, Type of Service (ToS)
Expansion / Connectivity
Interfaces LAN : 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ WAN : 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x ADSL2+
Nätverk och kommunikation
Anslutningsteknik Trådlös, Kabelansluten
Antal WAN-portar 1
Modem / Digitalt signaleringsprotokoll ADSL2+
Modem / Protokoll och specifikationer ITU G.992.3 Annex A, ITU G.992.3 Annex M
Datalänkprotokoll Ethernet, Fast Ethernet, Gigabit Ethernet, 802.11n, 802.11b, 802.11g
Nätverks/transportprotokoll TCP/IP, UDP/IP, L2TP, RSVP, APPN, ARP, NTP, BOOTP, DHCP, ICMP/IP, IPSec, PPPoE
Protokoll för administration på distans SNMP 1, SNMP 2, RMON, TFTP, CLI, Telnet, SNMP 3, HTTP
Trådlösa protokoll 802.11 b/g/n
Antal portar 4
Formfaktor Skrivbordsmodell
Nätverksprotokoll GRE, OSPFv3, MSDP, Statisk IPv4-routing, Statisk IPv6-routing, ECMP, RIPng, MLD, BGP-4+, CIDR, OSPF, EGP, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, IGMPv3
Mått och vikt
Yttermått bredd 30 cm
Yttermått djup 20 cm
Yttermått höjd 4.42 cm
Vikt 1.8 kg
