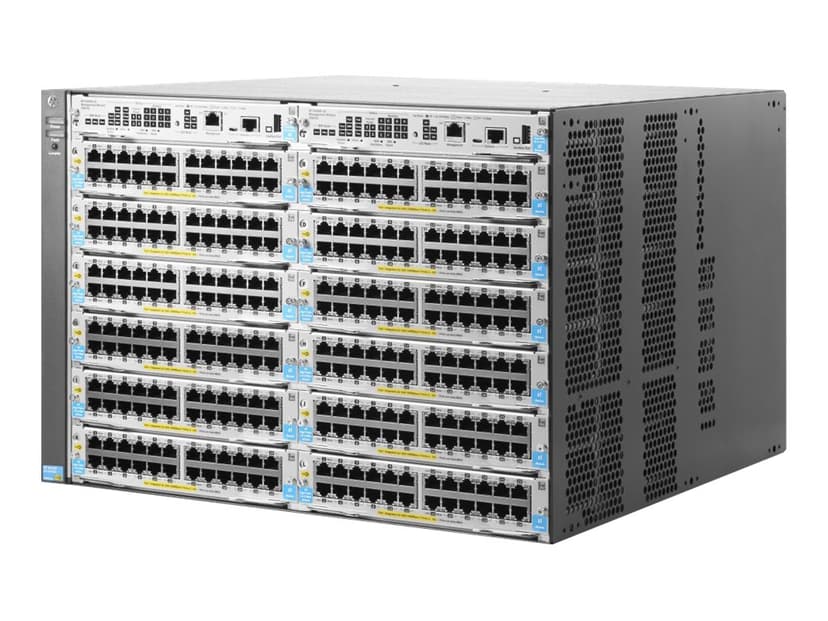

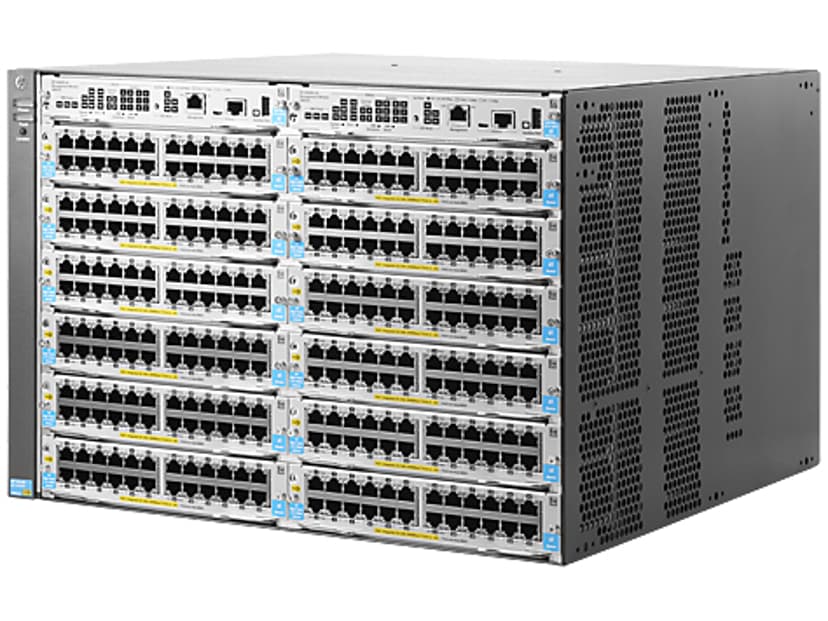

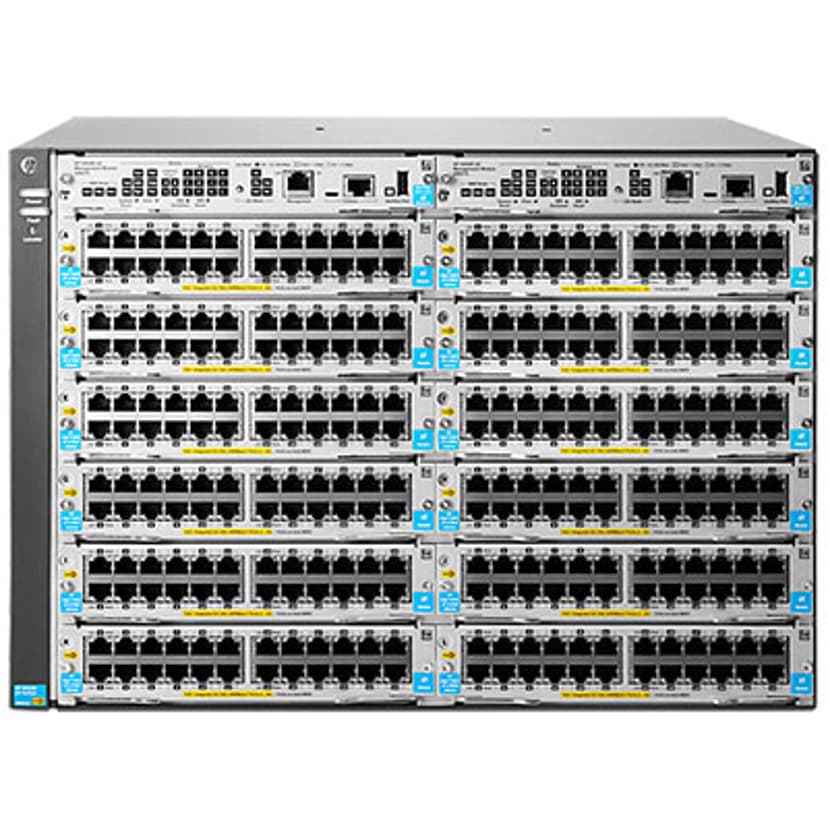

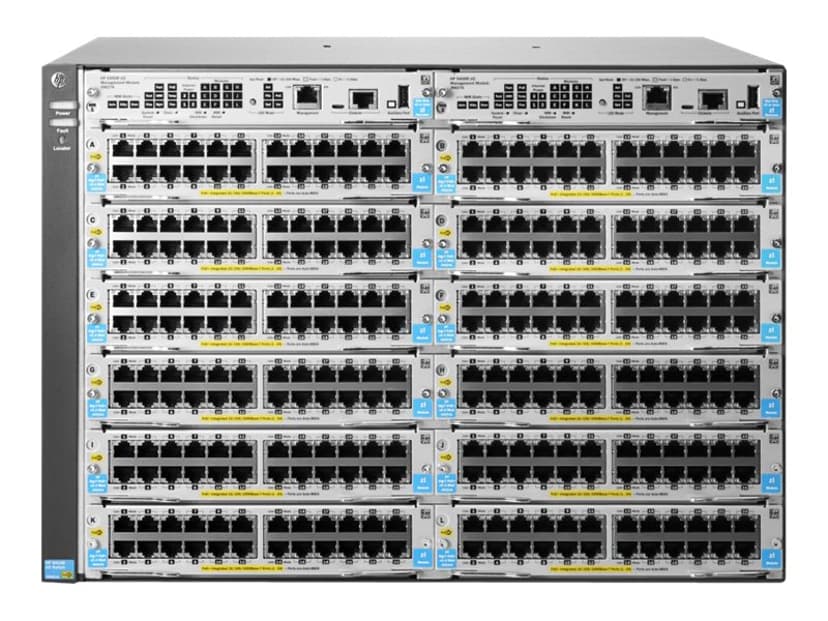

HPE 5412R zl2 Switch
- Lagerstatus: Beställningsvara
- Frakt från: 139 kr
- Artikelnr.
- 5010794923
- HPE
- Tillv. art. nr.
- J9822A
Snabbfakta
Tillverkare
HPE
Nyckelfunktioner
- Single View of the Network
- Flexible, Powerful and SDN-Ready for the Campus Network
- Resiliency and High Availability at the Edge
- Robust Security and Quality of Service for a Secure Network
Produktinformation
The HP 5400R zl2 Switch Series is the next-generation modular switch designed for enterprise edge and SMB and branch office core deployments. With enterprise-class resiliency and unprecedented flexibility, scalability and ease of use, the 5400R supports demanding network features such as hitless failover, power supply redundancy, QoS and security with full L3 features.Robust virtualization with HP AllianceOne solutions and flexible connectivity including 10 Gigabit Ethernet and full PoE+, the 5400R requires no add-on software licensing and is SDN ready with OpenFlow support.

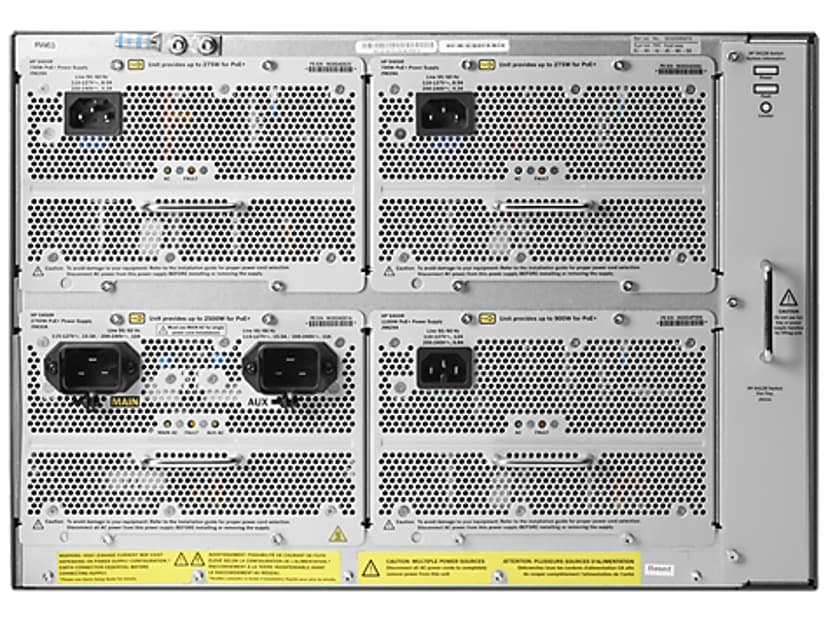

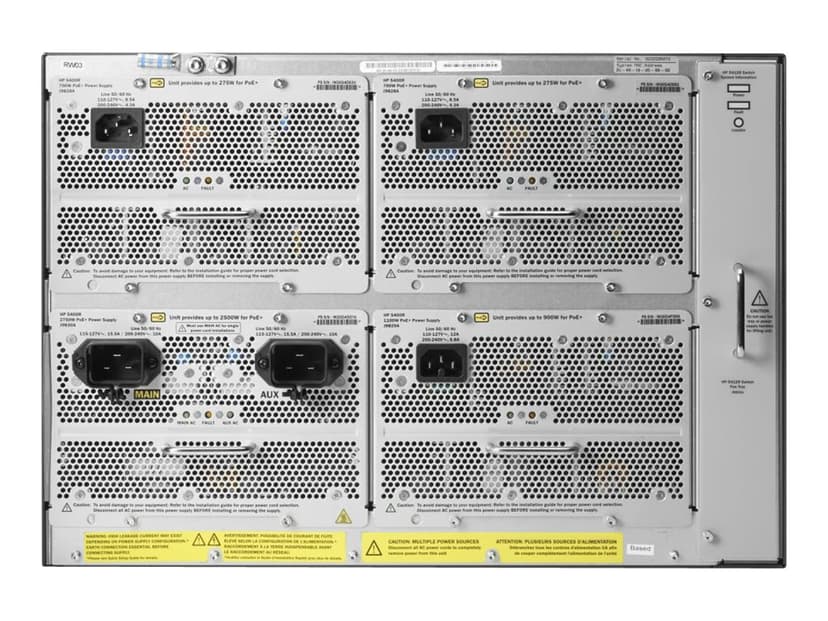

2 Power Supplies required
1 Fan Tray Included
1 Management module included
1 RJ-45 out-of-band management port
7U - Height
112597.pdfSpecifikationer
| Allmänt | |
|---|---|
| Tillverkare | HPE |
| Rackmonteringssats | Inkluderat |
| Routingprotokoll | OSPF, RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, static IPv6 routing, MLDv2, MLD, CIDR |
| Extra funktioner | Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), DiffServ support, IPv6 support, half duplex mode, full duplex mode, SNTP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, tunnelling, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, Non-Stop Routing (NSR), bandwidth control, STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, DHCP relay, Port Security, fan tray, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dynamic ARP protection, DHCP protection, dual firmware images, Class of Service (CoS), sFlow v5, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS) |
| Nätverkstyp | Switch |
| Krypteringsalgoritm | SSL |
| General / Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
| Enhetstyp | Switch - Managed |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SMON, SSH, CLI, XRMON |
| General / MAC Address Table Size | 64K |
| General / Performance | Throughput : 785.7 Mpps ¦ Routing/switching capacity : 1 Tbps |
| General / Subtype | Gigabit Ethernet |
| Rackmonteringskit | Inkluderat |
| RAM | |
| Minnesstorlek | 4 GB |
| Flash-minne | |
| Internt Lagringsutrymme | 1 GB |
| Nätverk och kommunikation | |
| Protokoll för administration på distans | SNMP 1, RMON 1, RMON 2, SNMP, TFTP, SMON, SSH, CLI, XRMON, Telnet, SNMP 3, SNMP 2c, HTTP |
| Included accessories | |
| Included Accessories | Fan tray |
| Strömtillförsel | |
| Typ av nätdel | Intern strömförsörjning |
| Nödvändig spänning | AC 120/230 V ( 50/60 Hz ) |
| Installerat antal | 0 (installed) / 4 (max) |
| Power / Power Redundancy | Valbar |
| Standarder som följs | |
|---|---|
| Kompatibel standard | CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 60950, EN 61000-3-3, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, FCC Part 15 A, ISO 7779 |
| Mått och vikt | |
| Yttermått bredd | 44.45 cm |
| Yttermått djup | 45.09 cm |
| Yttermått höjd | 30.73 cm |
| Vikt | 17.28 kg |
| Service och support | |
| Service & support | Begränsad livstidsgaranti |
| Service & Support | Livstidsgaranti |
| Service & Support | |
| Service & Support Details | Limited warranty - advance parts replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - lifetime ¦ New releases update - lifetime |
| General | |
| Processor | 1 x Freescale P2020 : 1.2 GHz |
| Enclosure Type | Rack-mountable - 7U |
| RAM | 4 GB |
| Flash Memory | 1 GB |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Nätverk | |
| Formfaktor | Rackmonterbar |
| Managerbar | Ja |
| Nätverksprotokoll | OSPFv3, Statisk IPv6-routing, MLDv2, MLD, CIDR, OSPF, RIP-1, RIP-2, BGP, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3 |
| Underkategori | Nätverkshubbar och switchar |
| Undertyp | Gigabit Ethernet |
