Dual port 1GbE FlexibleLOM for HP BladeSystem Gen8 servers offers a feature rich 1GbE choice

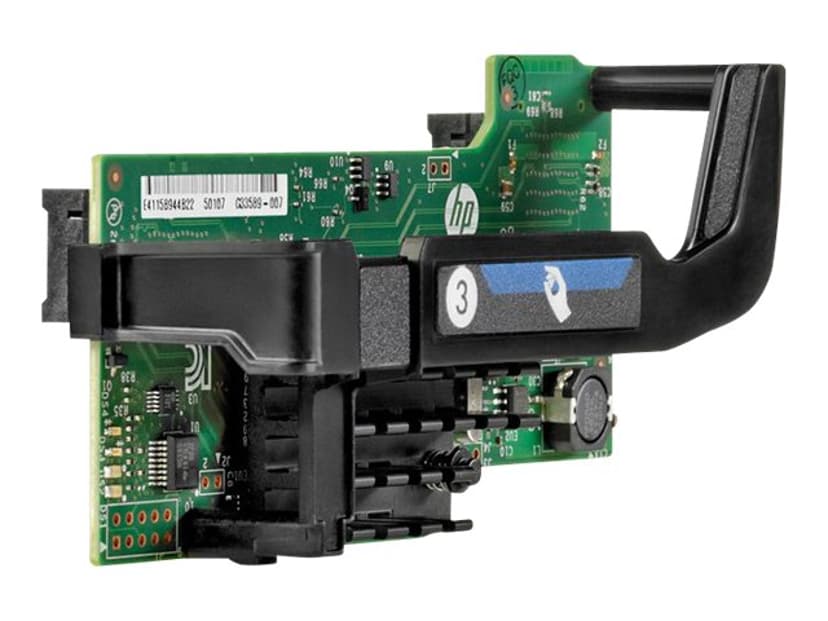

The HP 361FLB is a dual port 1Gb Ethernet FlexibleLOM mezzanine adapter for select HP ProLiant BladeSystem c-Class Gen8 servers. Based on the Intel I350 controller, it offers customers an entry choice with an easy transition to upgrade later to 10GbE while protecting their server investment. The 361FLB can be purchased while configuring the BladeSystem or as a separate option. New features supported with the HP 361FLB include enhanced Virtualization (VMQ, NetQueue, VMDq), new I/O innovations with Intel Integrated I/O and Data Direct I/O, new Power Management Technologies with DMA Coalescing, and IEEE 1588. The 361FLB ships with advanced server features including support for failover and load balancing, TCP/IP checksum offloading, large send offloading, Wake-on-LAN, PXE, jumbo frames, and VLAN tagging.
Specifikation 361FLB
Allmänt
Tillverkare
Hewlett Packard Enterprise
Modell
361FLB
Produkttyp
Nätverksadapter
Hårdvaruspecifikation
Anslutningsteknik
Kabelansluten
Gränssnitt & PCIe-version
PCIe 2.1, PCI Express 2.1 x4
Antal portar
2
Gränssnitt
1 x FlexibleLOM
Tillverkare styrkrets
Intel
Styrkrets
I350
Dataöverföringshastighet
1 Gbps
Min driftstemperatur
10 °C
Max driftstemperatur
35 °C
Luftfuktighet vid drift
10 - 90 % (icke-kondenserade)
Funktioner & protokoll
Länkprotokoll
Gigabit Ethernet
Funktioner
Jumbo Frames-support, Large Send Offload (LSO), PXE-support, Wake on LAN (WOL)
Standarder
IEEE 802.1as, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.3x, ACA, AS/NZS 3548, EMC, EN 60950, EN55022, EN55024, FCC CFR47 Part 15, FCC klass A-certifierad, IEC 60950, MIC, RoHS 6/6, UL, UL 60950, VCCI, WEEE
Operativsystemstöd
Citrix XenServer 6.0, Microsoft Windows HPC Server 2008, Microsoft Windows Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 5.7, Red Hat Enterprise Linux 6.1, SUSE Linux Enterprise Server, VMware ESX 4.1 update 2, VMware ESXi 4.1 update 2, VMware ESXi 5.0 update 1
