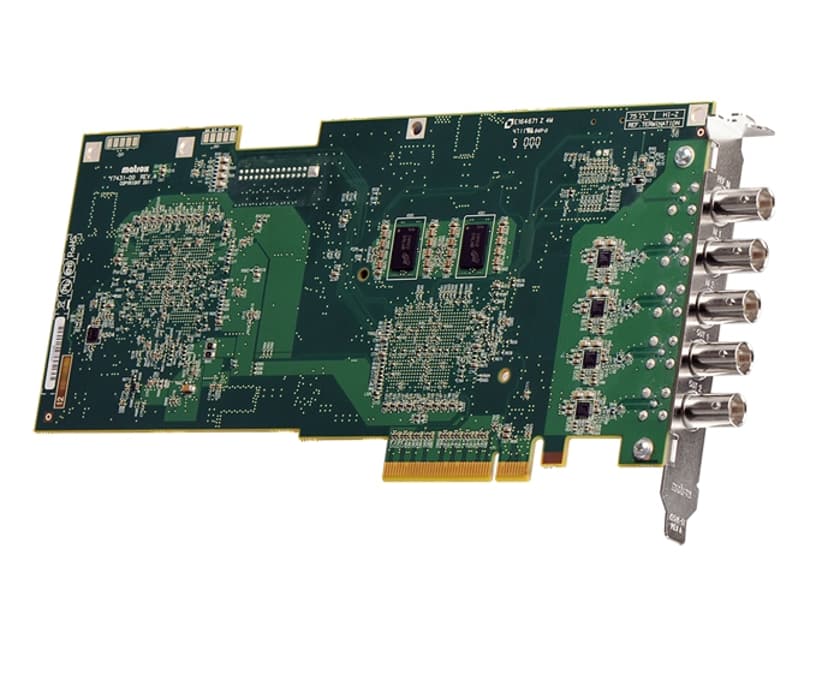

Matrox VS4

Produktinformation

Supported video formats
?NTSC/PAL/NTSC-EIAJ
?720P 50/59.94
?1080I 50/59.94
?1080P 23.98/24/25/29.97/30
?1080PsF 23.98/24/25/29.97/30

SDI input
?4 SD or HD input
?16 channels of embedded audio
?Compliant with SMPTE 259M, SMPTE 272M,SMPTE 292M, SMPTE 299M
?BNC connector (75 Ω), terminated
?Equalized input for maximum cable length support

SDI audio input
?16 channels of embedded audio
?24-bit, 48 kHz

Genlock Reference input
?HD analog tri-level sync or SD analog bi-level black burst
?BNC connector (75 Ω), terminated
?Optional termination of genlock (mechanical switch)
?Can be set to 75 Ω termination using the miniature SW1 switch on the card

Software
Streaming, Telestream Wirecast Studio and Wirecast Pro

Recording
Direct Capture Integration with Telestream Wirecast software

General

Dimensions

?¾ length PCI Express (x8) card
?L: 23.2 cm (9.125") × W: 10.7 cm (4.2")
?Overall thickness including components 1.9 cm (0.75")

Power
Total power consumption: 23.0 watts


Kit Contents in the box
?Matrox VS4
(Wirecast is not included)
