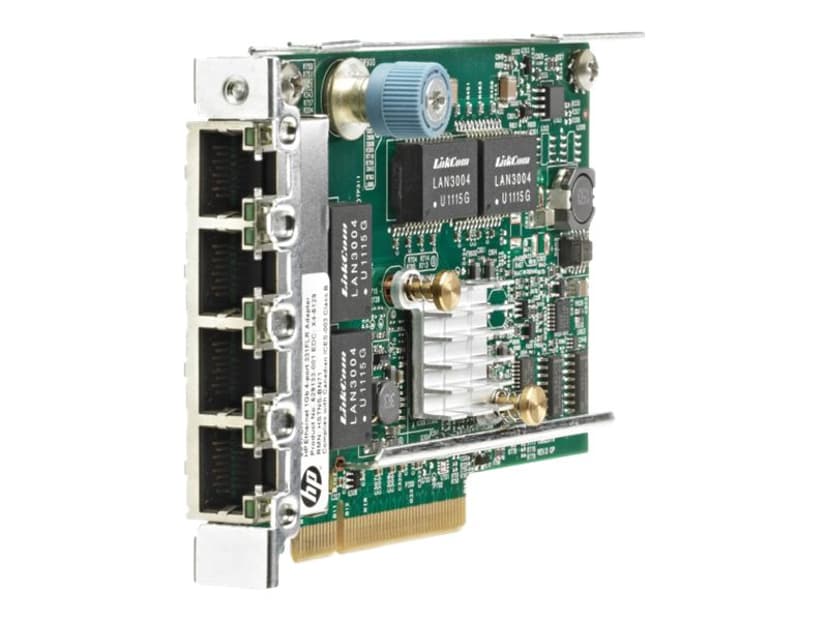

HPE HPE 331FLR

2 095 kr Exkl. moms 65 kr/mån (Vid hyra 36 månader)
  • Lagerstatus: Skickas inom 48h
  • Frakt från: 139 kr
  • Artikelnr.
  • 5010895462
  • Tillv. art. nr.
  • 629135-B22

Snabbfakta

Tillverkare
Hewlett Packard Enterprise
Antal portar
4
Typ av portar
10/100/1000
Dataöverföringshastighet
1 Gbps
Styrkrets
BCM5719
Formfaktor
Instickskort
Gränssnitt & PCIe-version
PCI Express 2.0 x4

Nyckelfunktioner

  • Designed for Maximum Throughput and High Port Density

Produktinformation

The HP Ethernet 1Gb 4-port 331FLR Adapter for select HP ProLiant Gen8 and Gen9 rack servers features the next generation of Ethernet integration, offering a single-chip solution in a FlexibleLOM form factor, which offers the option for future upgrades to 10GbE networking speeds. It delivers full line-rate performance across all ports with low power consumption. The HP 331FLR is ideal for virtualization, security, server consolidation, network segmentation, and other applications requiring maximum throughput and port density. The total aggregate throughput of 4Gb meets the needs of customers desiring high bandwidth. The HP 331FLR supports advanced features such as Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588, HP Sea of Sensors 3D and virtualization features such as VMware NetQueue and Microsoft VMQ. Support for HP Sea of Sensors 3D Technology enhances server performance while reducing energy use and expense.

Specifikationer

Allmänt
Tillverkare Hewlett Packard Enterprise
Produktlinje HPE
Modell 331FLR
Produkttyp Nätverksadapter
Hårdvaruspecifikation
Anslutningsteknik Kabelansluten
Formfaktor Instickskort
Gränssnitt & PCIe-version PCI Express 2.0 x4
Antal portar 4
Typ av portar 10/100/1000
Gränssnitt 4 x Ethernet 1000 - RJ-45
Tillverkare styrkrets Broadcom
Styrkrets BCM5719
Dataöverföringshastighet 1 Gbps
Statusindikatorer Portöverföringshastighet, Länk/akvititet
Min driftstemperatur 0 °C
Max driftstemperatur 55 °C
Luftfuktighet vid drift 10 - 90 % (icke-kondenserade)
Funktioner & protokoll
Länkprotokoll Ethernet, Fast Ethernet, Gigabit Ethernet
Nätverksprotokoll TCP/IP, UDP/IP
Funktioner Fullt duplexläge, Jumbo Frames-support, PXE-support, Large Send Offload (LSO), Energy Efficient Ethernet, TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), TCP/IP-checksummeavlastning, UDP/IP-checksummeavlastning, VLAN-stöd
Standarder IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az, IEEE 802.3x, IEEE 802.3ad (LACP), FCC Part 15, EN 60950-1, WEEE, RoHS 6/6, ICES, VCCI V-3, EN 61000-3-2:2006, EN 61000-3-3:2008, KN22, KN24, EN55022:2006 Class B, FCC Klass B-certifierade, UL, VCCI Class B ITE, EN55024
Mjukvara HP Systems Insight Manager (HP SIM)
Operativsystemstöd SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Microsoft Windows Small Business Server 2011 Essentials, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, VMware ESX 4.1, VMware ESXi 4.1, Red Hat Enterprise Linux 5.7, VMware ESXi 5.1, VMware ESXi 5.0
Administrationsprotokoll SNMP
Dimensioner & Vikt
Djup 11.75 cm
Höjd 7.62 cm
